2 Inch New Model Big Power 4 kw Working Efficiency Is 500 pieces Per Hour Portable Hose Crimping Machine Excavator Hose Press Tool Hydraulic Hose Crimper
DESCRIPTION
Portable Hydraulic Hose Crimper - New Model
This powerful Portable Hose Crimping Machine Excavator Hose Press Tool Hydraulic Hose Crimper boasts a robust 4 kW motor, delivering exceptional performance with an impressive efficiency of up to 500 pieces per hour. Designed for versatility, Portable Hose Crimping Machine Excavator Hose Press Tool Hydraulic Hose Crimper ideal for crimping hydraulic hoses and is perfect for use in excavator applications. Portable Hose Crimping Machine Excavator Hose Press Tool Hydraulic Hose Crimper compact design ensures portability, making Portable Hose Crimping Machine Excavator Hose Press Tool Hydraulic Hose Crimper easy to transport and operate in various settings. Upgrade your hose crimping capabilities with this efficient and reliable tool!
Our products have been widely used in various industries like engineering machinery,coal mines,chemicals, metallurgy,petroleum,automobile,shipbuilding,aviation and transport.

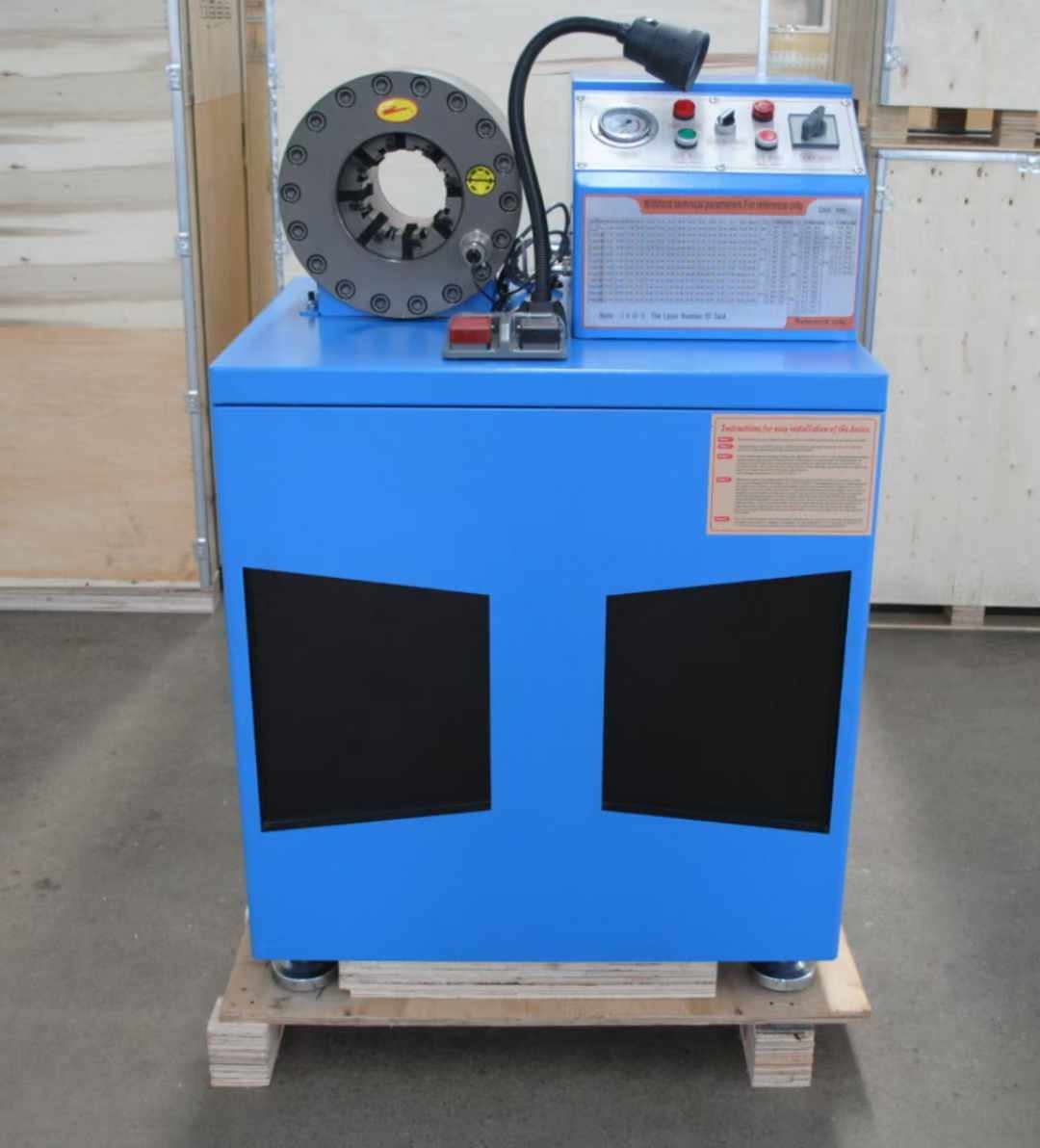

FY-51XK is a hose crimper for hydraulic high pressure flexible hose range from 1/4 inch to 2 inch one to six stainless steel wire braided or spiraled. It has three different operate mode, to meet customer different need.
MAIN ADVANTAGES
1. Big oil pump, efficient and long life
2. Multifunctional operate panel, easy to change between automatic and semi-auto
3. Pressure can be shown on the panel
4. Foot pedal as standard to make hands free
5. Working light to make crimping work more clear
| crimping range/skiving range | 6-51mm(1/4''-2''inner diameter of hose) |
| quantity of dies | 10 sets |
| item diesNo. of | length 60mm(15,19,23,26) |
| Length 70mm(31,36,41) |
| Length 80mm(47,55,63) |
| accuracy | 0.01mm |
| output volume of pump | 10L |
| system pressure | 31.5Mpa |
| motor power | 4kw 1,2,3 phase (Optional) |
| voltage | 220V/380V/415V(Customizable) 50/60Hz |
| crimping force | 600T |
| work efficiency | 500pcs/h |
| maximum open diameter | 114mm |
| the max open tolerance | ±30mm |
| package dimension | 800*650*1230mm |
| machine dimension | 830*720*1350mm |
| Net weight | 310kg |
| Gross weight | 326kg |
TECHNICAL DATA
| Model | FY-51XK Hose Crimping Machine |
| Crimping Range | 6-51(mm) |
| Crimping Force | 600(T) |
| Hose Size | 1/4-2(inch) |
| Max. Opening | 30±mm |
| Die Sets | 10 |
| Maximum Open Diameter | 114MM |
| System Pressure | 31.5(Mpa) |
| Accuracy | 0.01(mm) |
| Work Efficiency | 500 pcs/h |
| Standard Voltage | 220v/240v/380v/415v(optional) |
| Motor Power | 4(KW) |
| Length | 800(mm) |
| Width | 650(mm) |
| Height | 1230(mm) |
| Weight | 310(KG) |
NOTE
- for non standard die sets;
- Customized die sets are available;
- Special voltage 220V, 240V, 380V,415V are availbale;
OPTIONAL
- Quick Change Tool
- UC control;
► TWO MODE EASY ALTERNATED
Automatic or semi-automatic mode can be choosen
► FOOT PEDAL SWITCH
Free hands for big hose, more convenient; Double usage, both closing and opening function
► PEDAL SWITCH
Foot pedal is standard supplied, the advantage is it can free the hand, so even for big size crimping, crimping will be easy
► HIGH QUALITY MOTOR
Copper wire aluminium motor, goof heat releasing
► SAFE DIE SET STORAGE
A box inside the machine body for storing the die sets
► APPLICATIONS
